Essential Roles of Form Tie Rods in Construction

Form tie rods, including shuttering tie rods, concrete form ties, i tie rod construction formwork, are indispensable components in modern construction. These structural elements ensure the integrity and precision of concrete structures by securing formwork panels during pouring, preventing deformation, and maintaining proper spacing. This article delves into their types, functions, installation best practices, and maintenance, highlighting their critical role in delivering durable and reliable buildings.





Types of Form Tie Rods i Shuttering Tie Rods

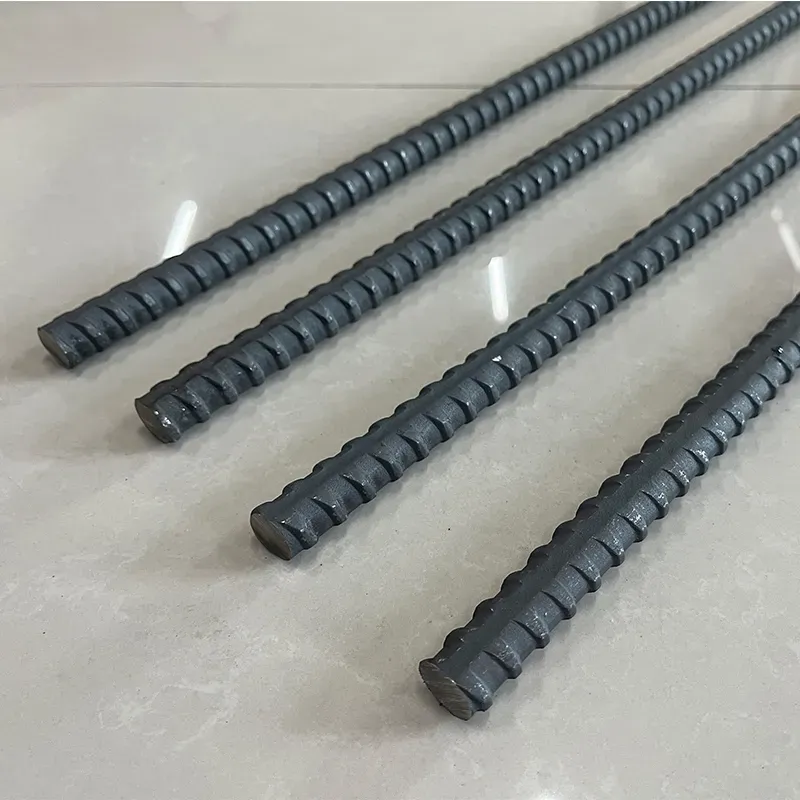

Form tie rods come in various designs to suit different construction needs. Standard form tie rods are typically made of steel and are used to connect opposing formwork panels, distributing the lateral pressure exerted by wet concrete. Shuttering tie rods, a specialized variant, are designed for use with shuttering (temporary mold) systems, offering enhanced stability in complex formwork setups.



Another common type is the concrete form tie, which often includes plastic or metal sleeves to allow for easy removal after concrete curing, minimizing damage to the finished surface. Tie rod construction formwork systems may also incorporate adjustable tie rods, enabling contractors to modify panel spacing dynamically, ensuring accuracy in dimensions for walls, columns, and other structural elements.



Key Functions of Tie Rod Construction Formwork



The primary function of tie rod construction formwork is to maintain the structural stability of formwork during concrete placement. By securely fastening form panels together, tie rods resist the hydrostatic pressure of wet concrete, preventing bowing or collapse. This ensures that the final structure adheres to architectural specifications, with consistent thickness and straightness.



Additionally, tie rods play a crucial role in aligning formwork panels, ensuring that joints are tight and gaps are minimized. This reduces the risk of concrete leakage (bleeding), which can compromise surface finish and structural integrity. Properly installed concrete form ties also facilitate the even distribution of forces across the formwork, enhancing the overall quality and durability of the concrete element.



Best Practices for Installing Shuttering Tie Rods



Installing shuttering tie rods requires careful planning and precision. First, contractors must select the appropriate type and size of tie rod based on the height, thickness, and design of the formwork. Over-spacing tie rods can lead to formwork failure, while under-spacing may waste materials and increase labor costs.



During installation, tie rods should be positioned vertically and horizontally at consistent intervals, using waler beams or channels to distribute loads evenly. It is essential to ensure that tie rods are securely fastened with nuts or proprietary connectors, as loose fittings can compromise stability. For concrete form ties with sleeves, proper alignment of the sleeves is critical to ensure easy removal and minimal surface repair after stripping the formwork.



Maintenance and Safety Considerations for Form Tie Rods



Regular maintenance of form tie rods is essential to prolong their lifespan and ensure safe use. Inspections should check for signs of corrosion, bending, or thread damage, as compromised tie rods can fail under pressure, leading to formwork collapse or structural defects. Corroded rods should be replaced immediately, while bent rods may need straightening or disposal, depending on the severity of damage.



Safety protocols must also prioritize proper handling and storage of tie rods. Workers should be trained to recognize faulty components and follow established guidelines for installation and removal. Using protective gear, such as gloves and safety glasses, reduces the risk of injury during handling. Proper storage in dry, ventilated areas prevents rust and ensures tie rods are ready for reuse in future projects.



Form Tie Rods FAQs



What is the primary purpose of form tie rods in construction?



The primary purpose of form tie rods is to secure formwork panels during concrete pouring, resisting lateral pressure and maintaining the desired shape and dimensions of the structure. They are critical for preventing formwork deformation and ensuring the structural integrity of concrete elements like walls and columns.



How do shuttering tie rods differ from standard form tie rods?



Shuttering tie rods are specialized for use with shuttering systems, designed to provide enhanced stability in temporary mold setups. They often feature unique connectors or coatings to withstand the stresses of repeated use in complex formwork configurations, making them ideal for projects requiring frequent formwork adjustments.



Why are concrete form ties often used with sleeves?



Concrete form ties with sleeves allow for easy removal after concrete curing. The sleeves act as a barrier between the tie rod and the concrete, preventing the rod from bonding with the structure. This facilitates quick stripping of formwork and minimizes the need for surface repairs, improving efficiency and finish quality.



What risks are associated with improper installation of tie rod construction formwork?



Improper installation of tie rod construction formwork can lead to formwork failure, causing concrete leakage, structural misalignment, or even collapse. Inadequate spacing or loose fittings can result in uneven pressure distribution, compromising the stability of the formwork and the final concrete structure.



How can contractors ensure the longevity of form tie rods?



Contractors can ensure the longevity of form tie rods by conducting regular inspections for corrosion, damage, or wear, replacing faulty components promptly, and storing rods in dry, corrosion-resistant environments. Proper handling during installation and removal, along with adherence to manufacturer guidelines, also extends their usable life.



Form tie rods, including shuttering tie rods, concrete form ties, i tie rod construction formwork, are unsung heroes in the construction industry. Their role in maintaining formwork stability, ensuring dimensional accuracy, and enhancing concrete quality cannot be overstated. By understanding their types, functions, and best practices for installation and maintenance, contractors can deliver safe, durable, and aesthetically pleasing structures. As the backbone of formwork systems, these components remain essential to the success of any concrete construction project.
