Formwork for In Situ Concrete – Precise, Reusable, Fast

Real-World Notes on formwork for in situ concrete and the humble Hex Nut that holds it together

On most pours I’ve visited, the loudest kit gets the glory. But it’s the small ironmongery—the tie rods and hex nuts—that quietly decide whether your wall is plumb, your joint is tight, and your schedule holds. WRK’s Hex Nut, made in the Development Area of Botou, Cangzhou City, Hebei Province, China, sits right in that unsung category. And yes, when we talk about formwork for in situ concrete, we’re really talking about load paths, repeatability, and how fast you can cycle a set without drama.

What’s trending on site (and why it matters)

Three shifts I keep seeing: faster cycle times, stricter temporary-works control, and a push toward traceable, reusable accessories. In formwork for in situ concrete, that means nuts that don’t round off after a dozen cycles, threads that stay honest, and coatings that don’t flake at the first hint of grout wash. Surprisingly, more buyers now ask for test certs by heat lot. Good sign.

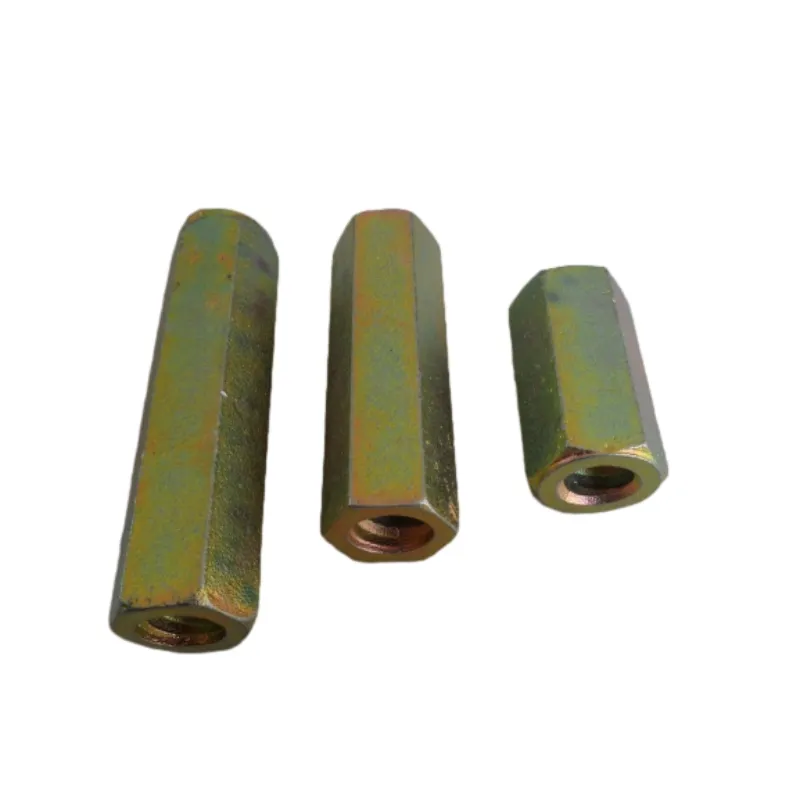

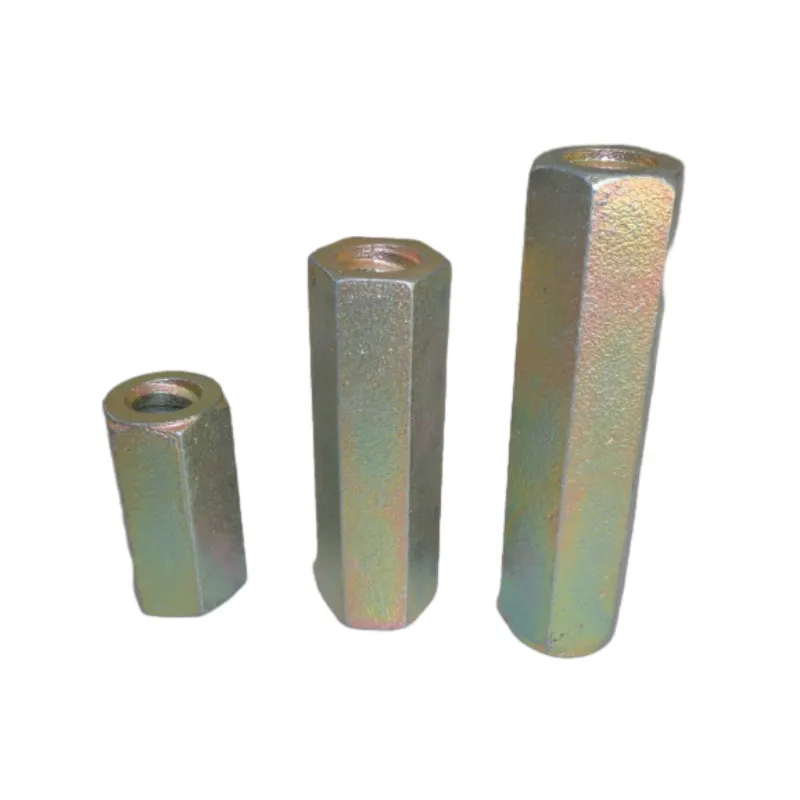

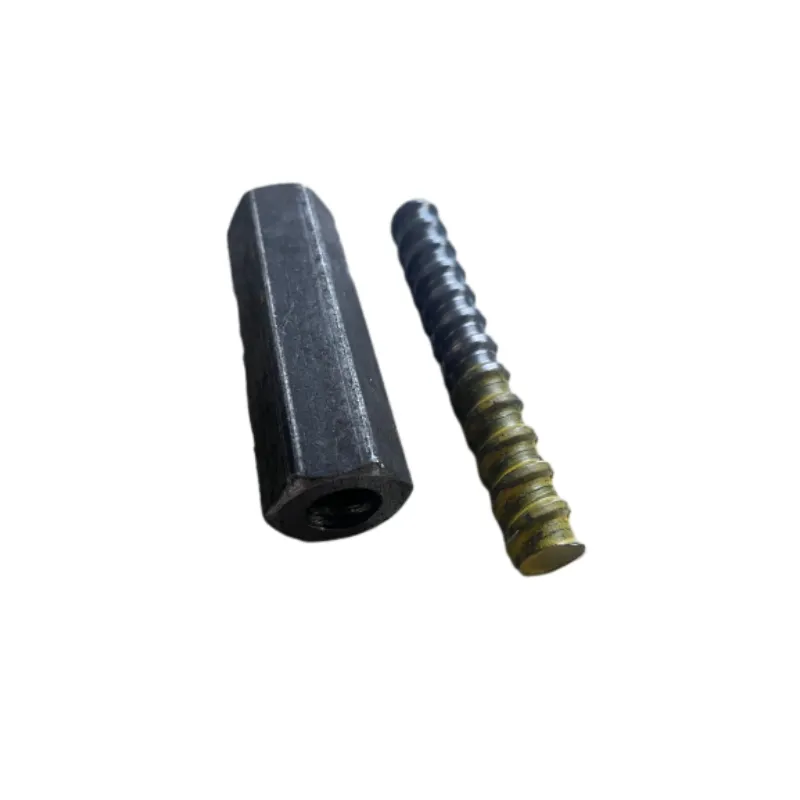

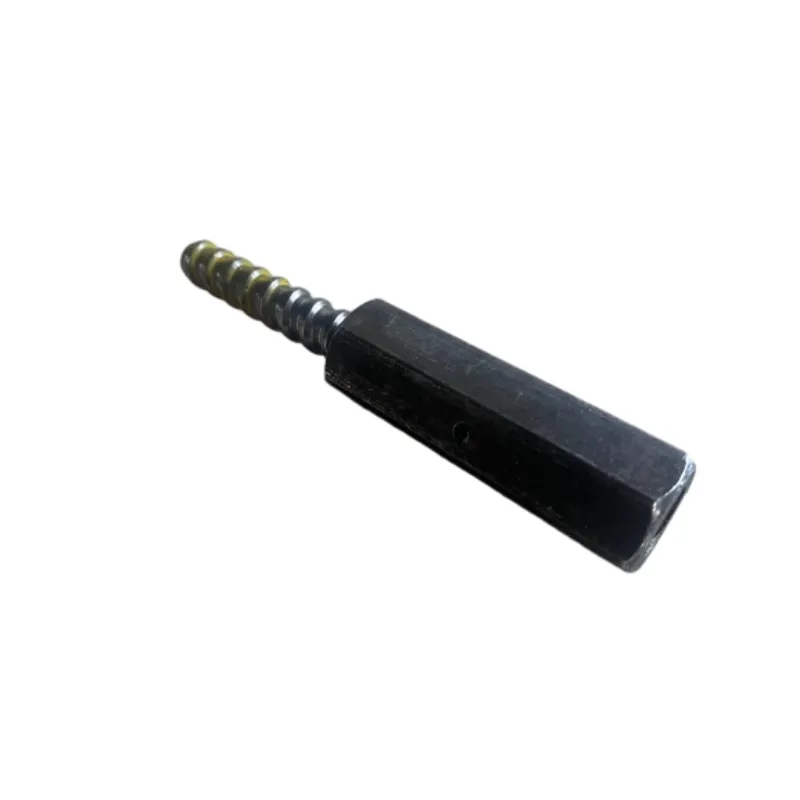

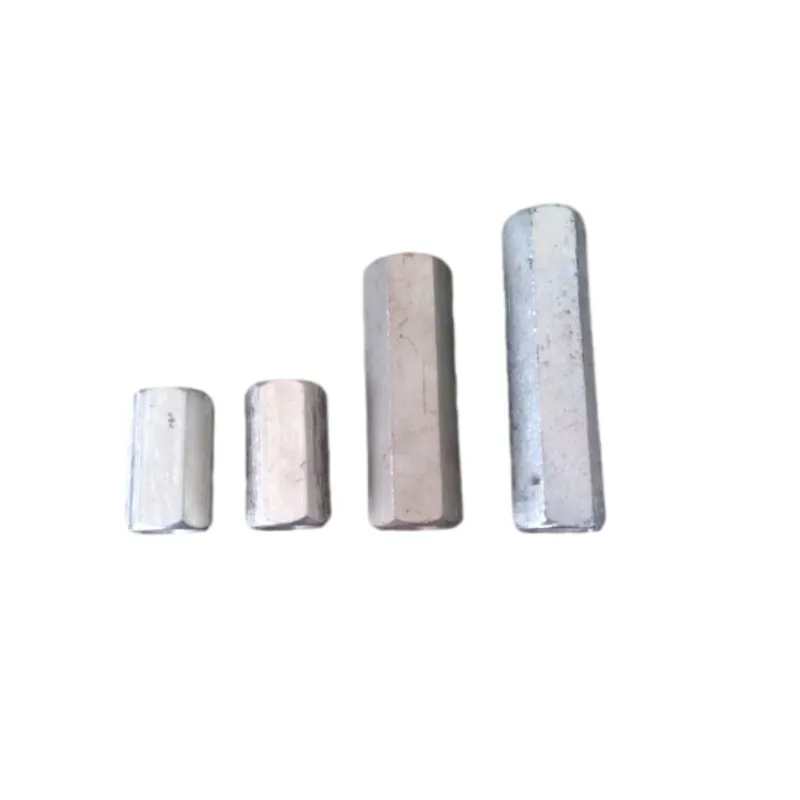

WRK Hex Nut: materials, methods, and testing

WRK produces cast iron hex nuts and steel hex nuts. The steel versions are the workhorse for high clamp loads; ductile iron appeals on price for lighter duty or non-critical zones—though I’d keep them away from over-torqued tie systems, to be honest.

Process flow: material selection → casting/forging → CNC machining → threading (ISO metric) → heat treatment (steel, when specified) → surface finish (zinc/black) → proof-load test → inspection → packing.
Testing and standards: ISO 898-2 (nut mechanical properties), ISO 965-1/2 (metric threads), ASTM A563 (US spec alt), ISO 4042 (coatings), ASTM B117 (salt spray), and site compliance per ACI 347 / EN 13670 for formwork for in situ concrete execution controls.
Service life: ≈50–200 reuses in typical formwork duty for steel nuts; ductile iron ≈30–120. Real-world use may vary with torque discipline and cleaning.

Product specs (Hex Nut for tie-rod systems)

Parameter	Typical Range/Option	Notes
Material	Carbon steel; Ductile iron	Steel for higher proof loads; iron for cost-sensitive use
Property Class	≈4, 6, 8 (ISO 898-2)	Selected by project load case
Thread	M12–M24; 15/17 mm tie-rod compatible	ISO 965-2 tolerance 6H
Finish	Zinc-plated, black oxide	Corrosion resistance per ISO 4042
Proof Load	≈60–120 kN (size/grade dependent)	Lab data; site torque discipline required

Where they’re used

Columns, shear walls, cores, and any handset or modular system where tie rods pass through. On a high-rise core in Shenzhen, crews told me WRK’s steel nuts “held torque without the scary squeal.” That tracks with what many customers say: keep the threads clean and they pay you back.

Vendor snapshot (quick compare)

Vendor	Price	Lead Time	Certs	Notes
WRK (Botou, Cangzhou)	Competitive	≈10–20 days	ISO 9001, test reports	Good batch traceability
Vendor A	Low	≈25–30 days	COC only	Longer transit
Vendor B	Mid–High	≈7–14 days	ISO 9001/14001	Solid, pricier

Customization

Logo stamping, special coatings (thick zinc, Dacromet), UNC/metric threads, and matched sets with 15/17 mm tie rods and plates. For formwork for in situ concrete in aggressive climates, I’d spec thicker coating and a conservative torque procedure.

Mini case studies

Metro station pour, Southeast Asia: WRK steel nuts on 17 mm tie system, 96-hour salt-spray coating, ≈120 reuse cycles; less than 2% replacement rate across 6 months.
Industrial tank, Europe: Ductile iron nuts used for non-pressure shutters, ≈50 cycles, no thread galling reported; switched to steel near kicker where torque spiked.

Final thought: nuts are cheap until they aren’t. In formwork for in situ concrete, a rounded hex or stretched thread costs a re-pour. I guess that’s why the seasoned foreman keeps a torque chart taped to the gang.

Origin: DEVELOPMENT AREA OF BOTOU, CANGZHOU CITY, HEBEI PROVINCE, CHINA
