High-Quality Formwork Tie Rods for Secure Concrete Forms

Understanding the Critical Role of Formwork Tie Rods in Modern Construction

In the realm of robust construction and civil engineering, the integrity of concrete structures is paramount. Central to achieving this structural stability during the casting process is the formwork tie rod. These essential components are designed to withstand the immense lateral pressures exerted by wet concrete, ensuring that the formwork panels remain rigidly in place and maintain the desired shape of the concrete element. From towering skyscrapers and intricate bridge designs to foundational infrastructure, the reliability and precise engineering of these tie rods are non-negotiable. They are pivotal in preventing formwork deformation or failure, which could lead to significant structural defects, costly rework, and severe safety hazards. Our commitment lies in delivering high-performance tie rods that meet the stringent demands of contemporary construction practices, supporting projects that shape our world.

Precision Engineering: The Manufacturing Process of a Formwork Tie Rod

The production of a high-quality formwork tie rod is a meticulously controlled engineering process, critical for ensuring the structural integrity of concrete pouring operations. Each step is designed to maximize tensile strength, durability, and resistance to environmental stressors.

Key Manufacturing Stages:

1. Material Selection & Preparation: We primarily utilize high-grade alloy steels, such as 45# carbon steel or specialized high-strength low-alloy (HSLA) steels, chosen for their superior strength-to-weight ratio and fatigue resistance. Raw materials undergo rigorous chemical composition analysis and mechanical property testing (e.g., tensile strength, yield strength, elongation) to ensure compliance with international standards like ASTM A615 or EN 10083. This initial screening is paramount to the product's ultimate performance.
2. Hot Rolling/Forging: Steel billets are heated to specific temperatures and then hot-rolled into the desired bar diameter. For applications requiring exceptional strength and grain structure refinement, a forging process might be employed. This step enhances the material's internal structure, aligning grain flow for improved mechanical properties.
3. Thread Rolling/Cutting: The critical element of any formwork tie rod is its threading. We predominantly use cold thread rolling, which forms the threads by displacing material rather than cutting it. This process significantly increases the thread's fatigue resistance and shear strength by creating a compressive stress at the thread root. Metric coarse threads (e.g., M12 to M36) or specific proprietary thread forms are produced to ensure robust engagement with anchor nut for tie rod and other formwork accessories.
4. Heat Treatment: Depending on the required mechanical properties, tie rods undergo specialized heat treatments, such as quenching and tempering. This process optimizes the steel's hardness, toughness, and ductility, achieving a balanced microstructure that resists brittle fracture under high stress.
5. Surface Treatment & Corrosion Protection: To extend service life, tie rods receive various surface treatments. Common methods include hot-dip galvanization (conforming to ISO 1461) for superior corrosion resistance, zinc plating, or protective coatings. This is particularly crucial for components used in harsh environments or for concrete form tie rods intended for long-term outdoor exposure.
6. Final Inspection & Testing: Each batch undergoes rigorous quality control. This includes dimensional checks, thread gauge verification, visual inspection for surface defects, and non-destructive testing (NDT) such as magnetic particle inspection for sub-surface flaws. Crucially, destructive tests like tensile load testing (to ISO 6892-1) are performed on samples to verify ultimate tensile strength and proof load capacity, ensuring adherence to specified safety factors (e.g., ANSI A10.9). Our products consistently meet or exceed ISO 9001 quality management standards.

The service life of a well-maintained formwork tie rod can exceed hundreds of reuses under proper handling, especially those with advanced corrosion resistance. These rods are indispensable across diverse target industries, including petrochemical facilities (where corrosion resistance is paramount), heavy metallurgy complexes, and critical water supply & drainage infrastructure, demonstrating superior advantages in scenarios demanding energy saving in material use and enhanced corrosion resistance against aggressive chemical environments.

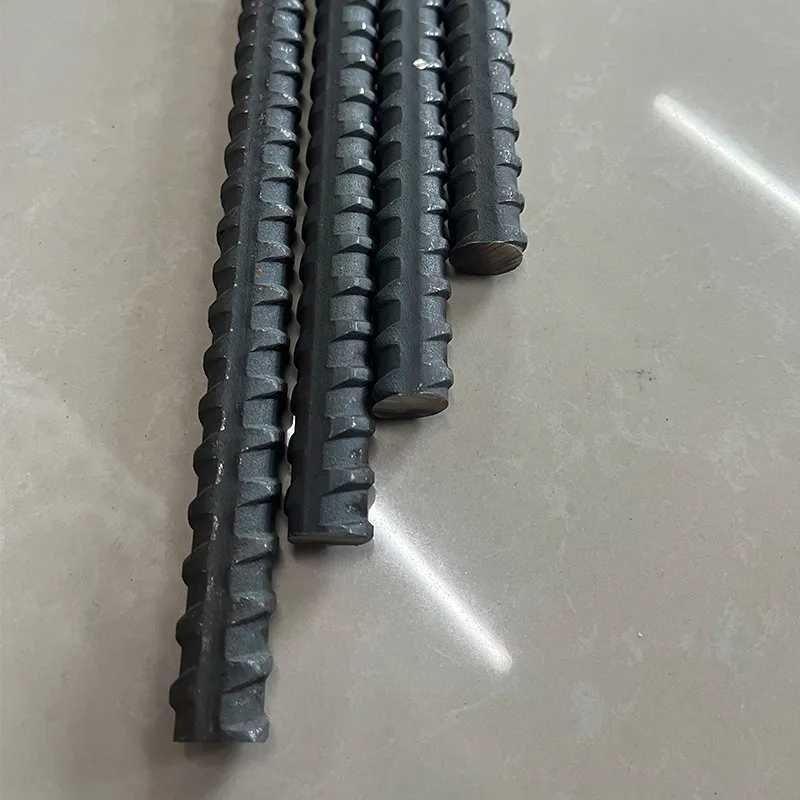

Precision engineering ensures the reliability of every formwork tie rod.

Industry Trends and Innovations in Concrete Formwork Tie Bars

The construction industry is continually evolving, driven by demands for increased efficiency, enhanced safety, and sustainable practices. This paradigm shift directly impacts the development and application of concrete formwork tie bars and related systems. Current trends point towards several key areas:

• High-Strength & Lightweight Materials: There's a growing emphasis on materials that offer superior strength with reduced weight. This not only eases handling and installation but also reduces transportation costs and carbon footprint. Advanced alloy steels and composite materials are being explored to achieve higher load capacities with smaller diameters, optimizing material usage.
• Enhanced Corrosion Resistance: As infrastructure projects are designed for longer lifespans, the need for components that can withstand aggressive environmental conditions (e.g., saltwater, industrial pollutants) is critical. Innovations in galvanization techniques, duplex coatings, and even stainless steel alternatives for formwork tie rod systems are becoming more prevalent.
• Modular and Reusable Systems: Sustainability drives the adoption of formwork systems that are easy to assemble, disassemble, and reuse multiple times. This trend extends to tie rods, with designs focused on quick-release mechanisms and robust threading that maintains integrity over numerous cycles. The development of high-quality coil rod formwork systems exemplifies this trend, offering flexibility and reusability.
• Digital Integration & Smart Construction: Building Information Modeling (BIM) and digital planning are influencing how formwork is designed and implemented. While tie rods themselves are not "smart," their integration into digitally planned formwork systems ensures precise placement and optimized usage, minimizing waste and errors. Future developments may include embedded sensors for real-time load monitoring in critical applications.
• Safety Standards & Ergonomics: Continuous improvements in international safety standards (e.g., OSHA, CEN) push manufacturers to design products that minimize risks during installation and removal. Ergonomic designs for ancillary components like the anchor nut for tie rod reduce worker fatigue and improve site safety.

These trends underscore a commitment to innovation, pushing the boundaries of what concrete form tie rods can achieve in terms of performance, longevity, and environmental responsibility. Manufacturers are actively responding to these demands by investing in R&D and advanced manufacturing techniques.

Technical Specifications of High-Performance Formwork Tie Rods

Understanding the precise technical parameters of a formwork tie rod is crucial for engineers and procurement specialists to ensure optimal performance and safety in diverse construction projects. Below is a compilation of typical specifications for high-performance tie rods:

These specifications highlight the robust engineering behind each formwork tie rod, ensuring that they provide the necessary structural support under extreme concrete pressures. Our products are rigorously tested to meet these parameters, offering reliability and peace of mind for critical construction applications.

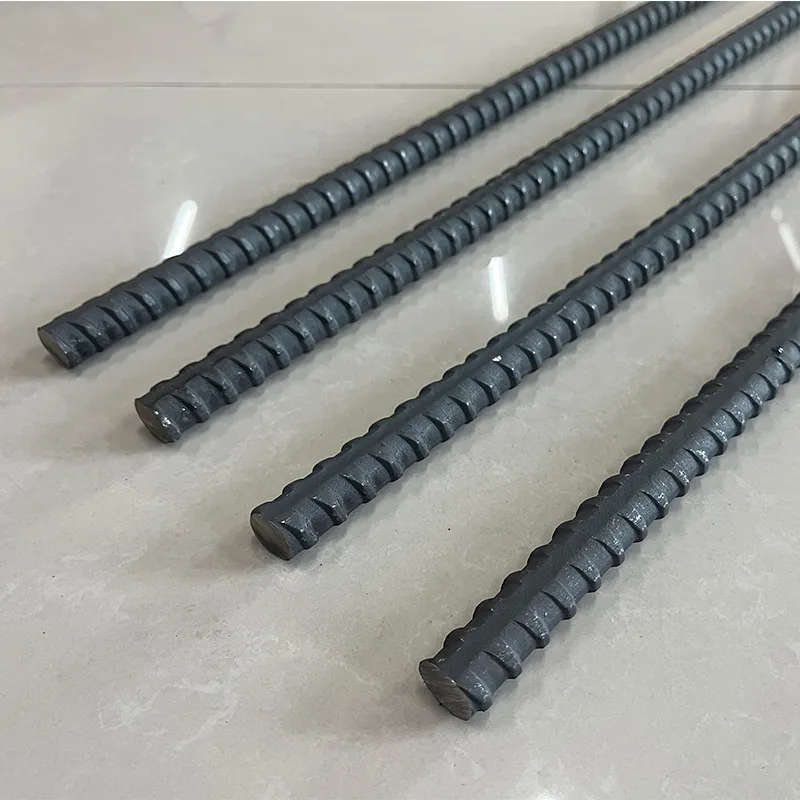

Critical technical specifications ensure the performance and safety of formwork tie rod systems.

Versatile Application Scenarios for Concrete Form Tie Rods

The utility of concrete form tie rods extends across a vast array of construction projects, underpinning the creation of resilient concrete structures. Their primary function is to secure formwork panels against the hydrostatic pressure of wet concrete, maintaining the precise dimensions and alignment of the cast element.

Key Application Areas:

• High-Rise Buildings: In the construction of vertical concrete elements like shear walls, core walls, and columns, tie rods are essential for resisting the substantial pressure exerted by large volumes of concrete poured at height. They ensure the plumb and straightness of vertical structures.
• Bridges and Tunnels: Infrastructure projects demand exceptional durability. Formwork tie rod systems are critical in forming bridge decks, piers, abutments, and tunnel linings, where precise curvature and structural integrity are paramount. Specialized coil rod formwork systems are often employed for complex geometries.
• Dams and Water Retaining Structures: Due to the immense hydrostatic pressures involved, dams, retaining walls, and water treatment facilities rely heavily on robust concrete formwork tie bars. The corrosion resistance of our tie rods is particularly beneficial in these demanding, moisture-laden environments.
• Industrial Facilities: Petrochemical plants, power stations, and heavy manufacturing facilities require massive concrete foundations, storage tanks, and structural frames. Tie rods ensure the stability of formwork during the casting of these large-scale, load-bearing components.
• Commercial and Residential Developments: From foundational slabs and basement walls to multi-story car parks and complex architectural features, tie rods provide the foundational support for a wide range of concrete casting applications, ensuring quality and structural adherence.

In each scenario, the selection of the appropriate formwork tie rod, accompanied by the correct anchor nut for tie rod and other accessories, is vital. Our extensive product range and technical expertise enable us to support these diverse applications with tailored solutions that guarantee performance and safety.

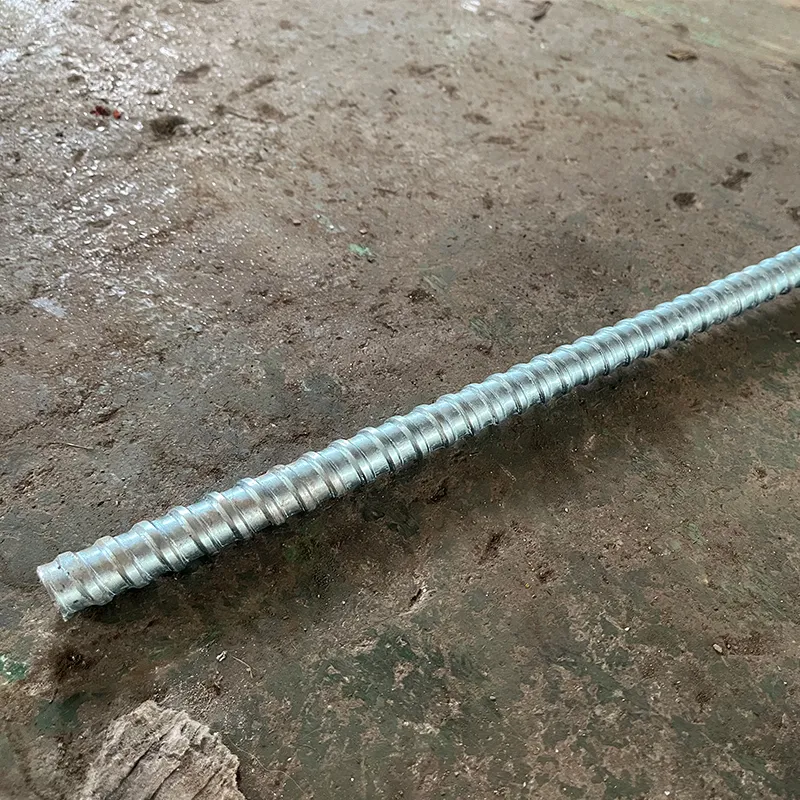

Versatile applications for formwork tie rod systems in major construction projects.

Technical Advantages and Performance Superiority

Our formwork tie rod systems offer distinct technical advantages that translate directly into enhanced project efficiency, safety, and cost-effectiveness for our B2B clients.

Key Advantages:

• Exceptional Tensile Strength: Engineered from high-grade steels, our tie rods possess superior ultimate tensile strength and yield strength, significantly exceeding minimum industry standards. This ensures robust performance under extreme concrete pressures, minimizing the risk of failure and enhancing structural integrity.
• Optimized Thread Design: Utilizing cold-rolled trapezoidal or metric coarse threads, our rods offer excellent engagement with an anchor nut for tie rod and other accessories. This thread design provides higher shear resistance and greater load-bearing capacity compared to cut threads, preventing stripping and ensuring secure fastening even under repetitive use.
• Enhanced Durability and Reusability: Through precise manufacturing processes and optional surface treatments like hot-dip galvanization (ISO 1461 certified), our concrete form tie rods exhibit exceptional resistance to corrosion, abrasion, and fatigue. This extends their operational lifespan, allowing for multiple reuses across various projects, thereby reducing material consumption and operational costs.
• Precise Dimensional Stability: Strict adherence to manufacturing tolerances ensures consistent dimensions and straightness, which is crucial for maintaining the accuracy of formwork panels. This precision contributes to the production of high-quality concrete finishes and reduces post-pour corrective work.
• Compatibility and Versatility: Designed to be compatible with a wide range of formwork systems, our tie rods seamlessly integrate into existing setups. Their versatility allows for application in various concrete thicknesses and structural geometries, including those requiring advanced coil rod formwork solutions.
• Safety Compliance: All products are manufactured and tested in accordance with international safety and quality standards (e.g., ISO, ANSI, CE directives). This commitment to compliance minimizes risks on site and provides assurance of product reliability.

These technical advantages culminate in a product that not only meets but often exceeds the demanding requirements of modern construction, offering a reliable, durable, and cost-effective solution for securing concrete formwork.

Vendor Comparison: Choosing the Right Formwork Tie Rod Supplier

Selecting the optimal supplier for formwork tie rod systems is a strategic decision that impacts project timelines, budget, and structural integrity. A discerning evaluation of potential vendors involves more than just price comparison; it requires a deep dive into several critical aspects.

By meticulously evaluating these criteria, clients can identify a partner who not only supplies high-quality formwork tie rod products but also provides comprehensive support and value throughout the project lifecycle.

Customized Solutions for Complex Formwork Challenges

Every major construction project presents unique challenges, often requiring specialized components that standard off-the-shelf products cannot adequately address. Recognizing this, we excel in providing fully customized formwork tie rod solutions, meticulously engineered to meet the precise demands of your specific applications.

Our customization capabilities extend to:

• Non-Standard Lengths and Diameters: Whether you require unusually short or exceptionally long concrete formwork tie bars, or specific diameters to fit proprietary formwork systems, our advanced CNC machining and forging capabilities allow for precise fabrication to any dimension.
• Specialized Thread Profiles: Beyond standard metric and trapezoidal threads, we can manufacture tie rods with unique thread forms to ensure compatibility with specialized anchor nut for tie rod designs or to enhance specific load transfer characteristics. This includes fine-tuning thread pitch and depth for optimized performance.
• Advanced Material Grades: For projects in extreme environments – such as marine construction, chemical processing plants, or areas with high seismic activity – we can utilize specialized high-strength low-alloy (HSLA) steels, stainless steels, or custom-tempered alloys to provide superior corrosion resistance, enhanced ductility, or greater fatigue life.
• Tailored Surface Treatments: In addition to standard hot-dip galvanization, we offer a range of specialized coatings for enhanced protection against specific corrosive agents, high-temperature resistance, or aesthetic requirements. These can include duplex coatings, powder coatings, or specialized epoxies.
• Integrated Accessories: Our expertise extends to designing and manufacturing bespoke accessories, such as custom-fabricated anchor nut for tie rod variants, conical sleeves, water barriers, and washers, ensuring a fully integrated and optimized formwork system. This often includes solutions for coil rod formwork systems.

By partnering with our engineering team, clients benefit from collaborative design, rigorous prototyping, and comprehensive testing, ensuring that every customized formwork tie rod solution delivers exceptional performance, reliability, and safety for even the most demanding construction challenges. Our commitment to innovation allows us to transform your unique project requirements into tangible, high-quality products.

Application Case Studies: Formwork Tie Rod in Action

Our commitment to quality and engineering excellence is best demonstrated through the successful application of our formwork tie rod systems in real-world projects. These case studies highlight our capability to deliver reliable solutions for complex construction demands.

Case Study 1: High-Rise Residential Tower Foundation

Project Scope: Construction of a multi-level basement and deep foundation for a 60-story residential tower in a dense urban environment. The project required precise concrete pours for retaining walls and elevator cores, with significant lateral pressures during casting.

Challenge: Maintaining strict dimensional accuracy for thick concrete walls (1.2m to 2m) and managing high pour rates to meet accelerated construction schedules. The formwork system needed to withstand pressures exceeding 150 kN/m² reliably.

Solution: We supplied high-strength M30 formwork tie rod systems, hot-dip galvanized for extended reusability and corrosion resistance, coupled with heavy-duty anchor nut for tie rod components. Our technical team provided on-site consultation to optimize tie rod spacing and formwork bracing, ensuring maximum load distribution and stability.

Outcome: The project successfully completed all major concrete pours on schedule, achieving exceptional concrete surface quality and dimensional accuracy. The contractor reported significant labor savings due to the ease of assembly and disassembly of our robust tie rod system, alongside minimal material wastage from repeated use. Customer feedback highlighted the "unwavering reliability" of our components under severe stress conditions.

Case Study 2: Coastal Bridge Pylon Construction

Project Scope: Fabrication of marine-grade concrete pylons for a new bridge spanning a tidal estuary. The environment presented severe corrosive challenges from saltwater and humid air.

Challenge: Protecting the concrete form tie rods from rapid corrosion to ensure long-term structural integrity and reusability over multiple pylon pours. The formwork also needed to accommodate complex geometries for aerodynamic shaping of the pylons.

Solution: We developed and supplied custom-length M24 concrete formwork tie bars manufactured from specialized corrosion-resistant alloy steel, further protected with a high-performance duplex coating system (zinc galvanization followed by a protective epoxy layer). This solution provided superior defense against chlorides and sulfates. Our coil rod formwork accessories were also integrated for enhanced flexibility in curved sections.

Outcome: The project successfully cast all pylons with excellent structural integrity and surface finish, experiencing no issues with tie rod corrosion or failure. The contractor noted the extended life of the tie rods, which facilitated multiple reuses, leading to substantial cost savings on materials. The client praised our proactive approach to material science and custom coating solutions, essential for the bridge's projected 100-year lifespan.

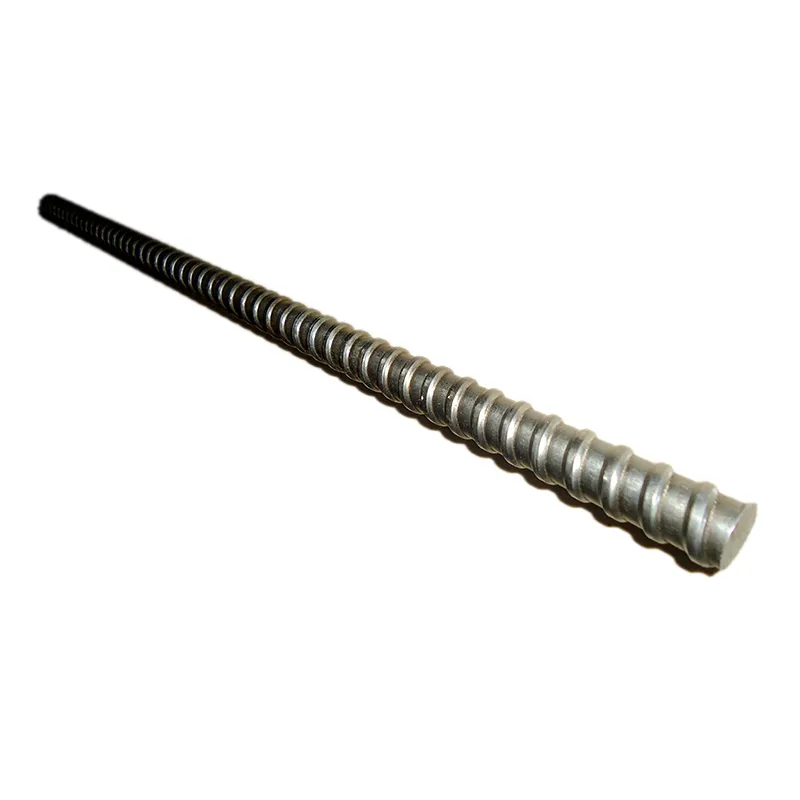

Successful application of formwork tie rod systems in demanding construction environments.

Frequently Asked Questions (FAQ)

Q: What is the primary function of a formwork tie rod?

A: The primary function of a formwork tie rod is to connect and secure opposing formwork panels, effectively resisting the lateral pressure exerted by wet concrete during pouring and curing. This ensures the formwork maintains its intended shape and dimensions, preventing deformation or failure.

Q: How do I choose the correct diameter and length for my concrete formwork tie bars?

A: The selection of diameter and length depends on several factors, including the thickness of the concrete element, the hydrostatic pressure expected (influenced by concrete mix and pour rate), and the specific formwork system being used. Our technical team can provide detailed calculations and recommendations based on your project specifications to ensure optimal safety and performance. Considerations for the associated anchor nut for tie rod are also crucial.

Q: What corrosion protection options are available for formwork tie rods?

A: We offer various corrosion protection options including self-color (uncoated), zinc plating, and hot-dip galvanization. For highly corrosive environments, specialized duplex coatings (galvanization plus a protective paint/epoxy layer) are available to significantly extend the service life and reusability of the tie rods. We also offer solutions for coil rod formwork.

Q: Are your concrete form tie rods compliant with international standards?

A: Yes, all our concrete form tie rods are manufactured and tested in strict adherence to international standards such as ISO 9001 for quality management, and relevant material and testing standards like ASTM, EN, and ANSI, ensuring global compatibility and reliability.

Lead Time, Warranty, and Customer Support

Efficient Lead Time & Fulfillment

We understand that timely delivery is critical for project success. Our streamlined manufacturing processes and robust supply chain management enable us to offer competitive lead times. For standard formwork tie rod orders, typical lead times range from 2-4 weeks, depending on volume and current production schedules. Custom orders may require additional time for design and prototyping. We maintain strategic stock levels of popular sizes and finishes to facilitate rapid dispatch. Our logistics team works with trusted global freight partners to ensure efficient and reliable delivery to your project site, anywhere in the world.

Comprehensive Warranty Commitments

We stand behind the quality and performance of our products. All our concrete formwork tie bars and accessories are covered by a comprehensive warranty against manufacturing defects and material failures for a period of [e.g., 12 months] from the date of purchase. This warranty is a testament to our confidence in our stringent quality control processes and the superior materials used. Full warranty terms and conditions are available upon request, providing our clients with peace of mind regarding their investment.

Dedicated Customer Support

Our commitment to our clients extends beyond the sale. We offer dedicated after-sales support to ensure optimal product performance and customer satisfaction. Our expert technical team is available to provide guidance on installation, maintenance, troubleshooting, and reusability best practices for your concrete form tie rods. We provide multiple channels for support, including direct phone lines, email, and dedicated account managers, ensuring prompt and effective assistance whenever you need it. Your success is our priority, and we strive to build long-term partnerships based on trust and exceptional service.

Conclusion: Partnering for Formwork Excellence

The selection of high-quality formwork tie rod systems is more than a procurement decision; it is a strategic investment in the safety, efficiency, and longevity of your construction projects. Our unwavering commitment to precision engineering, superior materials, and rigorous quality control ensures that every tie rod we produce delivers unmatched performance and reliability. By choosing our robust and customizable solutions, supported by extensive technical expertise and dedicated customer service, B2B decision-makers and engineers can confidently tackle the most demanding concrete forming challenges. We are dedicated to being your trusted partner, providing the foundational strength that builds the future.
